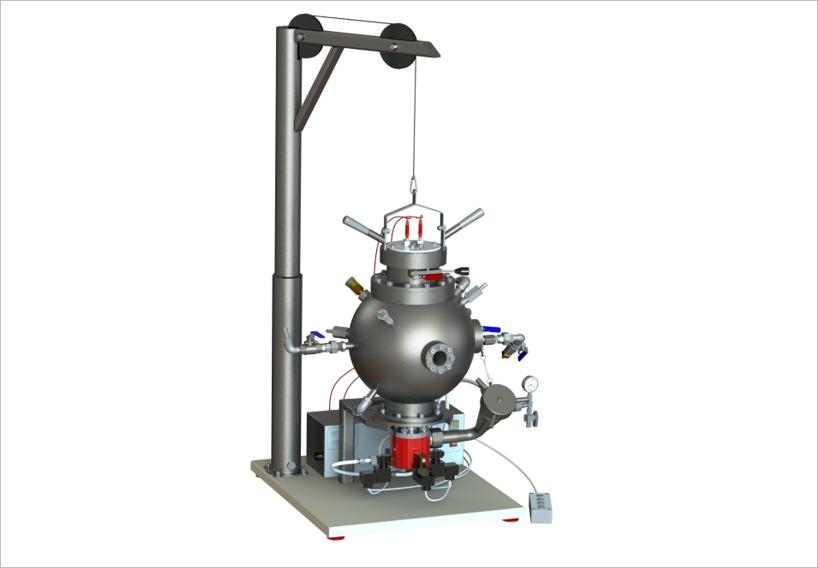

20-LITER SPHERE APPARATUS
model: SPD-3.1

STANDARD REFERENCES:
• ASTM E1226  Standard Test Method for Explosibility of Dust Clouds

• ASTM E1515 Standard test method for MEC - minimum explosible concentration
   of combustible dusts

• EN 14034-1:2004+A1:2011 Determination of the maximum explosion pressure Pmax of dust clouds

• EN 14034-2:2006+A1:2011 Determination of the maximum rate of explosion pressure rise
  (dp/dt)max of dust clouds

• EN 14034-3:2006+A1:2011 Determination of the lower explosion limit LEL of dust clouds

• EN 14034-4:2004+A1:2011 Determination of the limiting oxygen concentration LOC of dust clouds

• EN ISO/IEC 80079-20-2 Explosive atmopheres. Material characteristics. Combustible dust methods.

SPECIFICATION:
• 20-liter double layer vessel
• Material:                             stainless steel (1.4541 - 321)
• Working pressure:                 40 bar maximum
• Software:                           ANKO Dust Explosion Plotter®
• Measurement range:               - Pmax                  0-25 [bar]
                                             - (dp/dt) max        > 4000 [bar/s]
                                             - Kst                     > 1000 [bar·m/s]
                                             - LEL, MEC, UEL    from 0 [g/m3]
                                             - LOC                   1-21 [%O2]
• Smoke extractor outlet:        ø100-150  (4”-6”)
• Space requirements:            min. 2,5 x2,5 m
• Power supply:                     110 or 230 VAC

• 20l-sphere-dust-v31-rev2021.pdf (PDF)
