MINOR 3.3

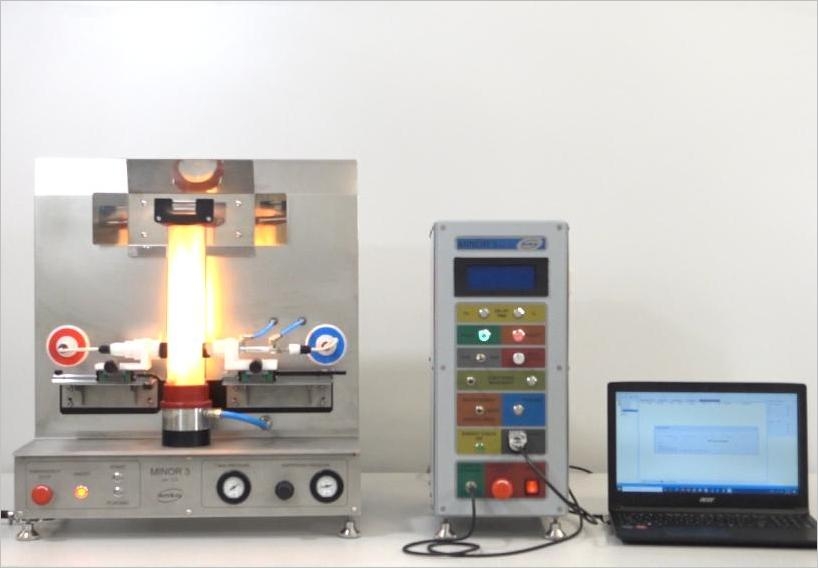

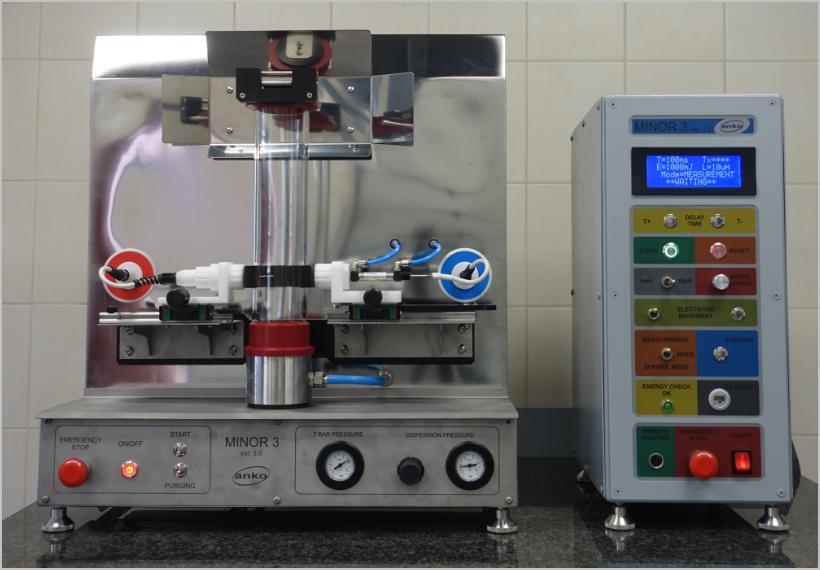

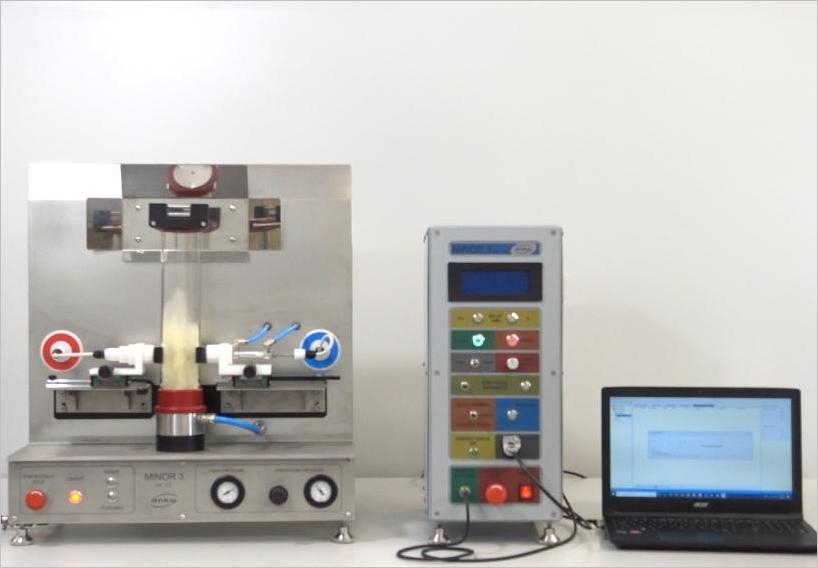

MIE - Minimum Ignition Energy Apparatus
DETERMINATION OF THE MIE - MINIMUM IGNITION ENERGY
OF DUST/AIR MIXTURES
STANDARD REFERENCES:
EN 13821
Potentially explosive atmospheres. Explosion prevention and protection.
Determination of minimum ignition energy of dust/air mixtures
ASTM E 2019
Standard Test Method for Minimum Ignition Energy of a Dust Cloud in Air
ISO/IEC 80079-20-2
Explosive atmospheres. Material characteristics. Combustible dusts test methods
SPECIFICATION: • Test vessel: 1,2L Hartmann glass tube • Ignition time delay range: 20-350 [ms] • Time delay check: real time measurement • Spark energy adjustment: - software adjustment - front panel slsector • Energies: 1, 3, 10, 30, 100, 300, 1000 [mJ], 2000 or 3000 mJ - optional • Injection pressure: front panel adjustment, pressure regulator built-in • Software: ANKOdustMIE® • Dimensions: - Ingnition block 620 (W) x 400 (D) x 700 (H) [mm] - Control Unit 250 (W) x 400 (D) x 580 (H) [mm] • Power: maximum 500 W • Mains: 230VAC or 110 VAC
