DIN 51794

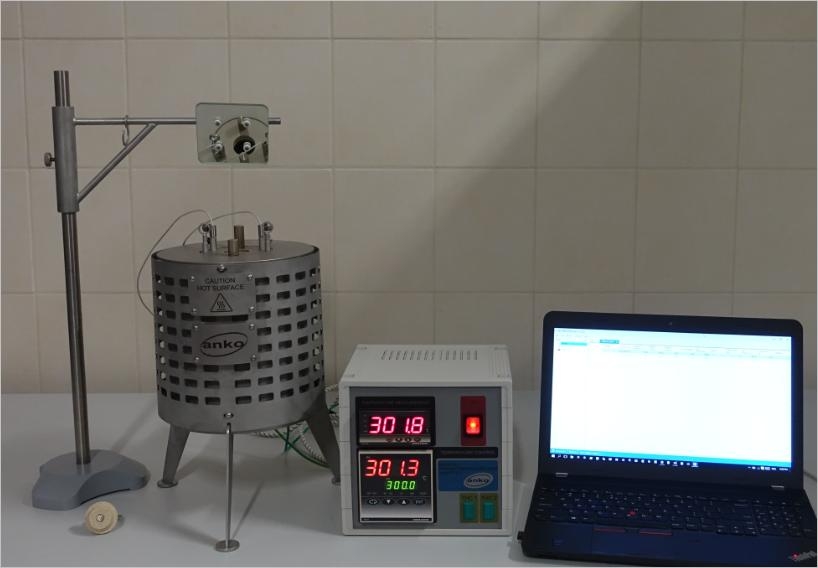

IGNITION TEMPERATURE OVEN
model: FLC 2

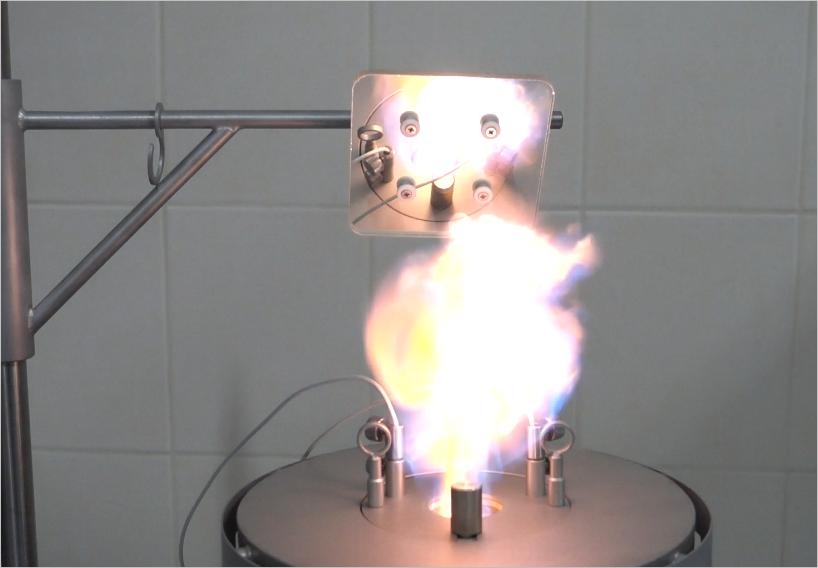

DETERMINATION OF IGNITION TEMPERATURE
OF FLAMMABLE LIQUIDS AND GASES

STANDARD REFERENCES:

DIN 51794 - “Determining the Ignition Temperature of  Petroleum Products”
IEC 60079-20-1 - "Explosive atmospheres. Material characteristics for gas and vapour classification.
                                Test methods and data".
EN 14522 - "Determination of the auto ignition temperature of gases and vapours".
Method A.15 - “Auto-Ignition Temperature (Liquids and Gases)”,
                             Official Journal of the European Union no. L142, May 31, 2008
                             European Community (EC), EC no. 440/2008, Part A: Methods for
                             the Determination of Physico-Chemical Properties, Guideline A.15

SPECIFICATION:

DIN 51794 furnace  :
Stainless steel body and other metal parts, for corrosion protection.
Test thermocouple, type K, wire diameter ø0,5mm.
Temperature control thermocouple (furnace temperature control), type K, Inconel® shield, isolated.
High quality insulation applied.
Power supply: 110 or 230 VAC .

Temperature control & readout  block:
PID controller .
Thermometer accuracy: ±0, 3% full span ±1 digit.

OPTIONS:
Additional 3rd temperature circuit containig: additional, type K, thermocouple,
   Inconel® shielded, isolated. For the furnace temperature testing (point 7.4.2 of DIN 51794).
Additional top cover plate assembly with thermocouple and 200ml glass flask.

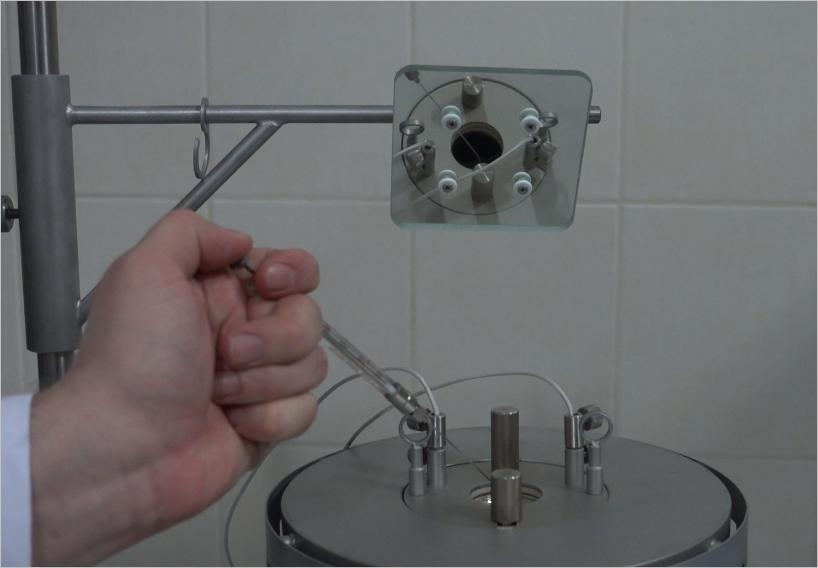

Hand-operated bulb pump block according to point 7.8  of DIN 51794 .
Custom design accessories.
USB output – external ANKO ReqTemp® program for temperature registration
