MINOR 3.1

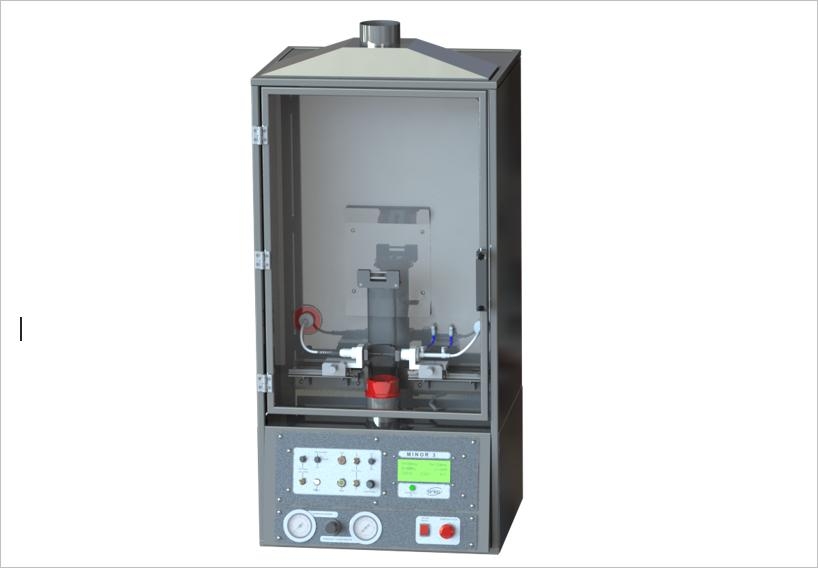

MIE - Minimum Ignition Energy Apparatus

DETERMINATION OF THE MIE - MINIMUM IGNITION ENERGY
OF DUST/AIR MIXTURES

STANDARD REFERENCES:

EN 13821

Potentially explosive atmospheres. Explosion prevention and protection.

Determination of minimum ignition energy of dust/air mixtures

ASTM E 2019

Standard Test Method for Minimum Ignition Energy of a Dust Cloud in Air

IEC 61241-2-3 - replaced by ISO/IEC 80079-20-2:2016.

ISO/IEC 80079-20-2:2016

Explosive atmospheres. Material characteristics.

Combustible dusts test methods

SPECIFICATION:

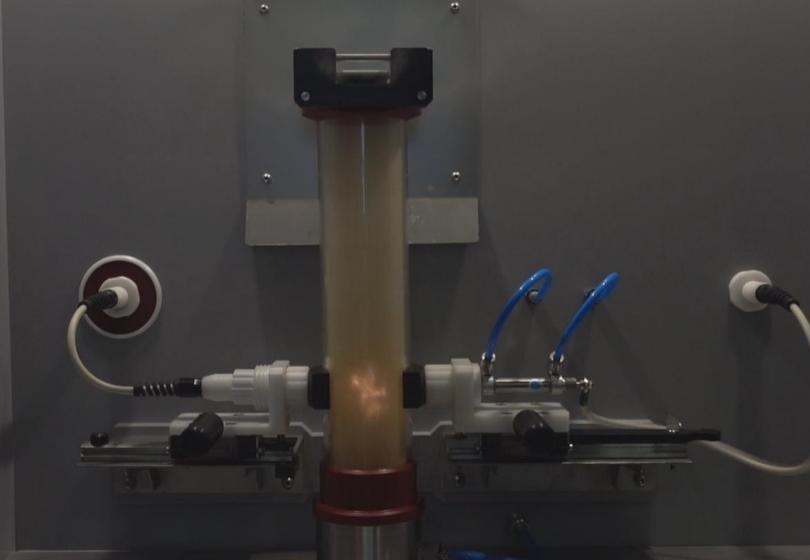

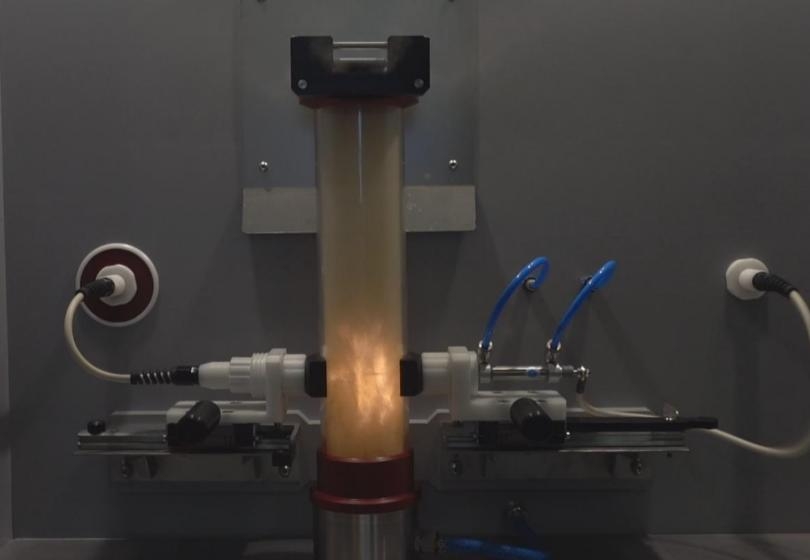

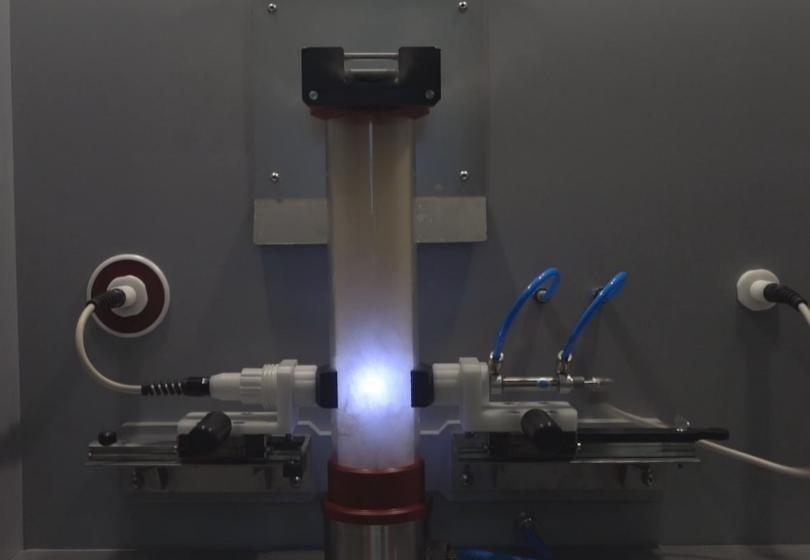

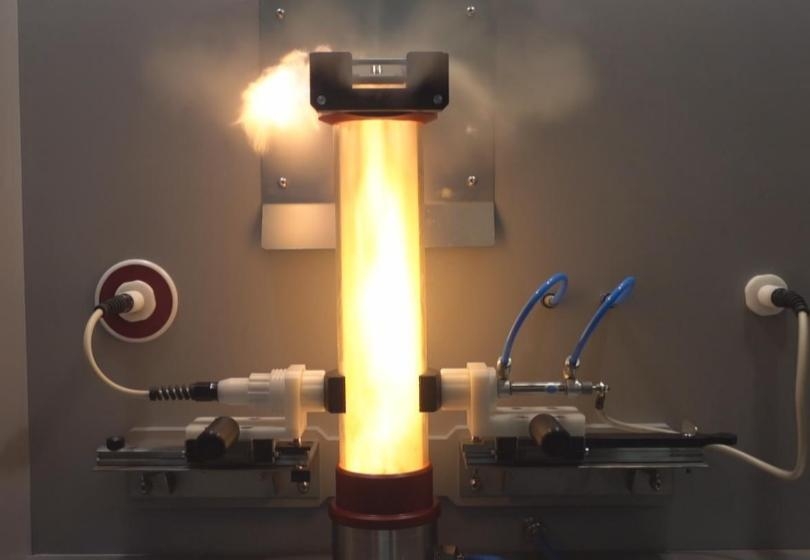

• Test vessel: 1,2L Hartmann glass tube

• Ignition time delay range: 20-350 [ms]

• Time delay check: real time measurement

• Spark energy control: software or front panel adjustment

• Energies: 1, 3, 10, 30, 100, 300, 1000 [mJ]
3000 mJ - optional

• Injection pressure: front panel adjustment

• Software: ANKOdustMIE^®

• Dimensions:
- 625 (W) x 595 (D) x 1345 (H) [mm]
- 25” (W) x 24” (D) x 53” (H) [in]

• Power: maximum 500 W

• Mains: 230VAC or 110 VAC
