AIT APPARATUS - ASTM E659 OVEN
model: FLB 2.0

STANDARD REFERENCES:

ASTM E659−14 - Standard Test Method for Autoignition Temperature
                         of Liquid Chemicals

SPECIFICATION:

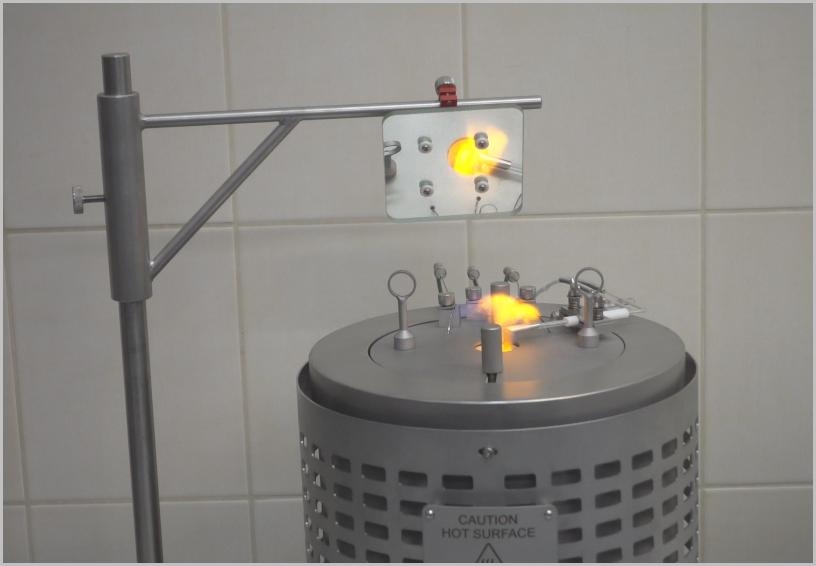

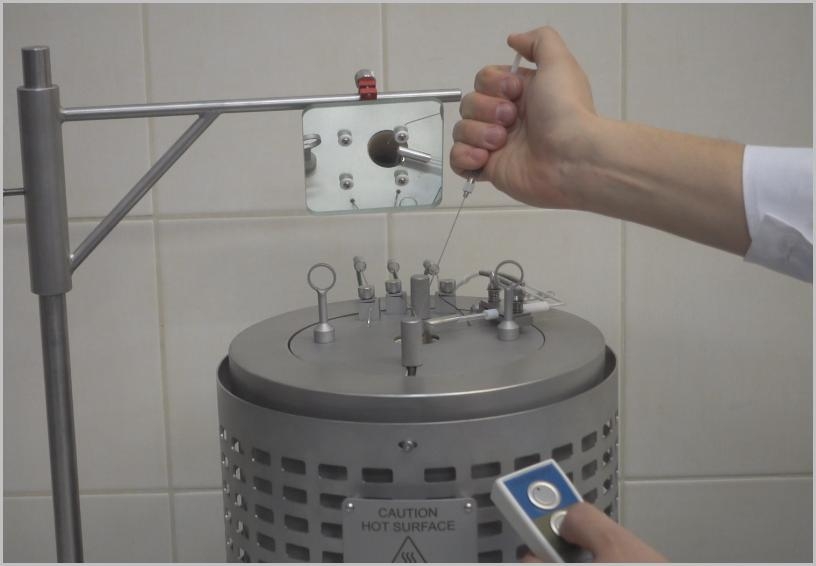

ASTM E659 furnace:

• Stainless steel body and other metal parts, for corrosion protection

• 3 test thermocouples (external flask temperatures), type K (Chromel-Alumel).

• Temperature control thermocouple (furnace temperature control), type K,
   Inconel® shield, isolated.

• Gas temperature thermocouple, type K

• High quality, long life, electric heater.

• High quality insulation applied.

• Power supply: 110 or 230 VAC .

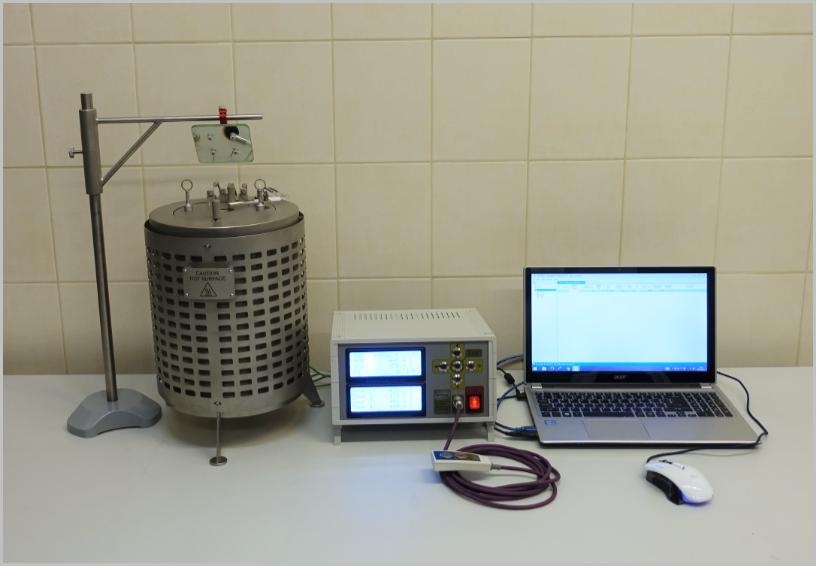

Temperature control, readout  & data acquisition block :

• PID controller applied for the temperature control, accuracy: ±0, 3% full span ±1 digit.

• 4-channel thermometer with LCD display, accuracy: ±0, 3% full span ±1 digit.

• Temperature data acquisition module. Data export to PC via USB connection.

Data acquisition software ANKO ReqTemp® Software :

• 4-channel temperature registration.

• User defined sampling speed – intervals from 1s.

• Easy to process   .txt  format .

• Easy screen/area  enlargement of selected data on diagram .

• Diagram printing .

• Data field for test/sample description.

• Test procedure & protocol printing.
