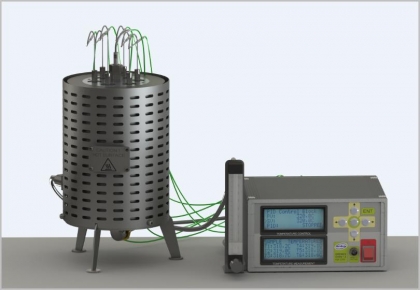

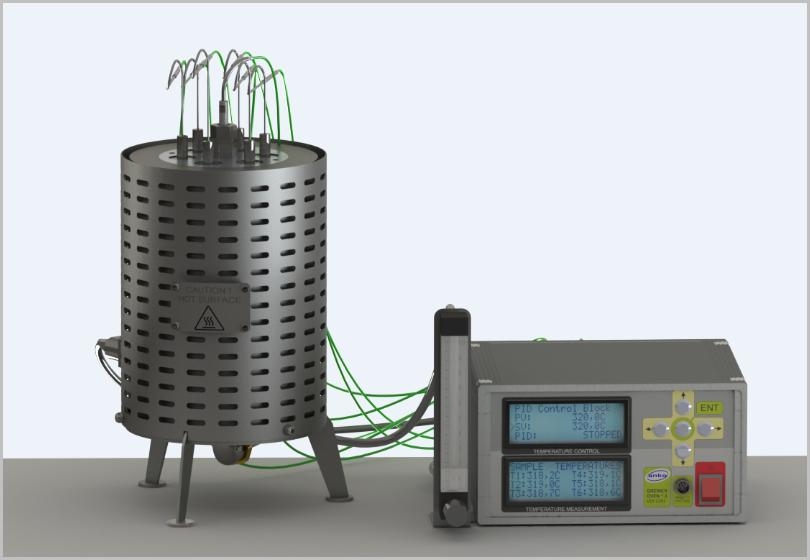

GREWER FURNACE APPARATUS model: GRO-1

GREWER FURNACE APPARATUS

DETERMINATION OF THE AUTOIGNITION TEMPERATURE

IN A HOT AIR-STREAM

STANDARD REFERENCES:

VDI 2263 part 1, point 1.4.1 - Autoigniton, Testing as per Grewer.

• six 8-ml wire-mesh baskets are placed in a heated air stream

• six thermocouples are placed in wire-mesh baskets and connected to control block

• DAQ (National Instruments^® circuit) installed in the control block

• 2l/min air flow is adjusted and measured

• ANKO ReqTemp^® program is used to register and process temperature data and in PC computer
