HSIT 1.2
HOT SURFACE IGNITION APPARATUS

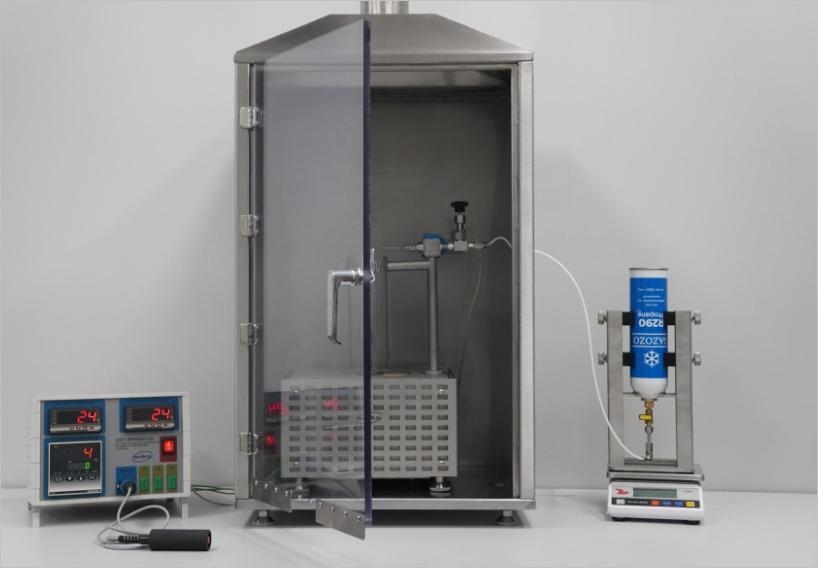

HSIT TEST APPARATUS

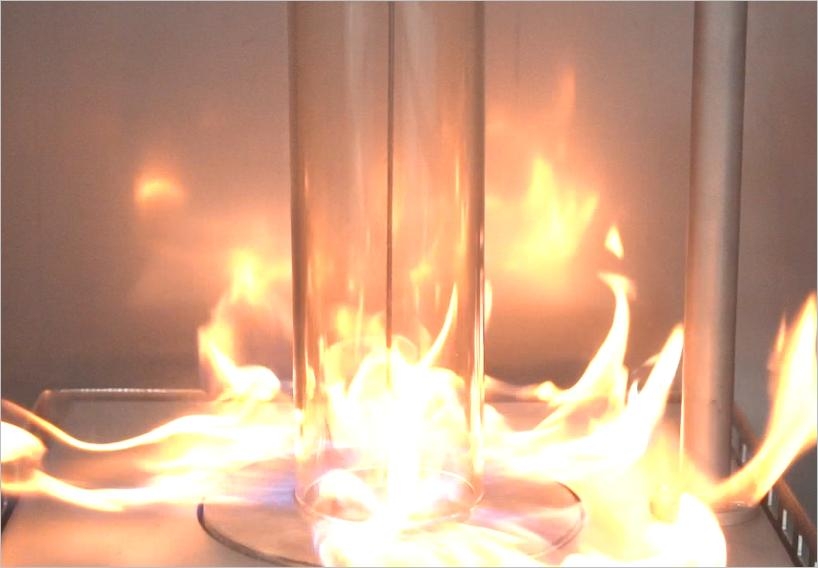

HOT SURFACE IGNITION TEMPERATURE OF REFRIGERANT GASES
STANDARD REFERENCES:
ASTM D8211 - Standard test method for hot surface temperature of gases on flat surface
SPECIFICATION:
• Glass tube: diameter: 75 x 2,5 mm
• Heating system capable of maintaining aconstant planchette temperature of 800°C

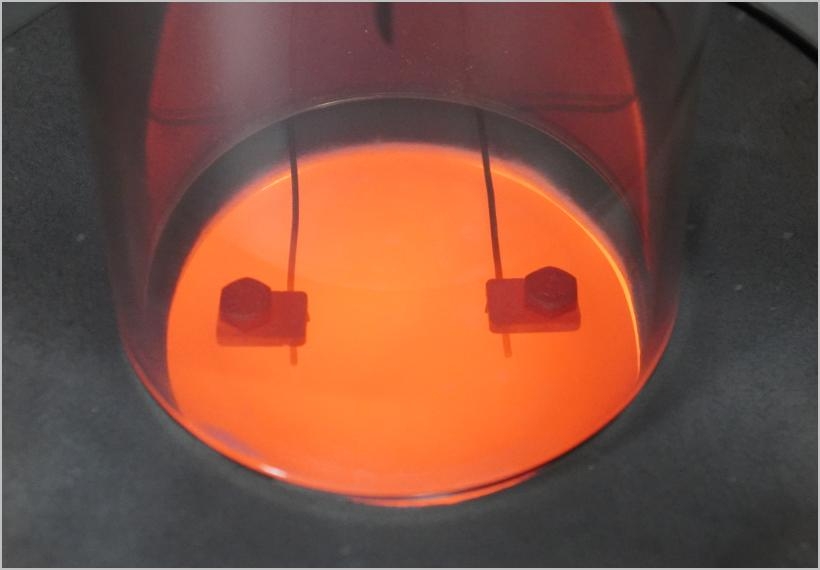

• Planchette thermocouples 2 x type K, calibrated acc. to ISO 17025
• Test temperature: 800°C
• Safety remote gas supply
extraction chamber
safe door glass
• dedicated computer program: HSIT ReqTemp®
frame-by-frame playback of test videos
visualization of tests in the form of a data table
• Weight 65 kg
• Dimensions 140 x 70 x 105 cm
• Power supply: 110 / 230 VAC
