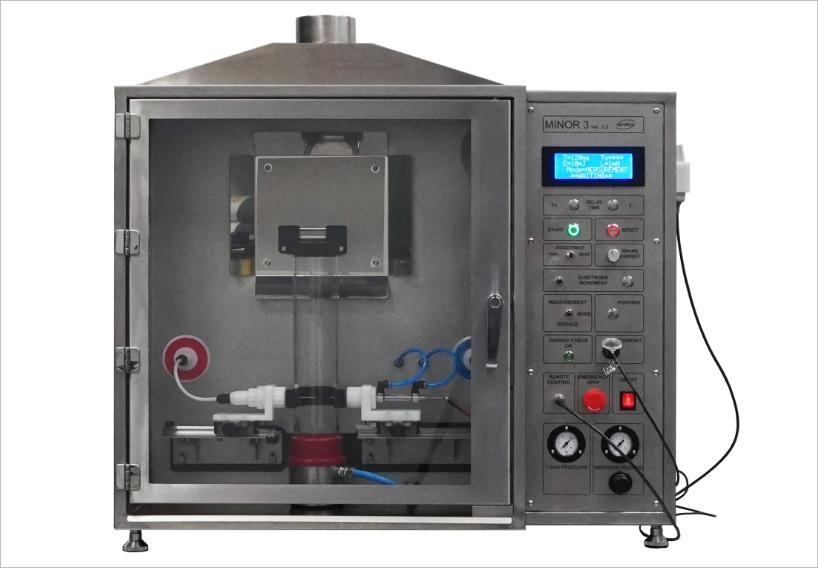

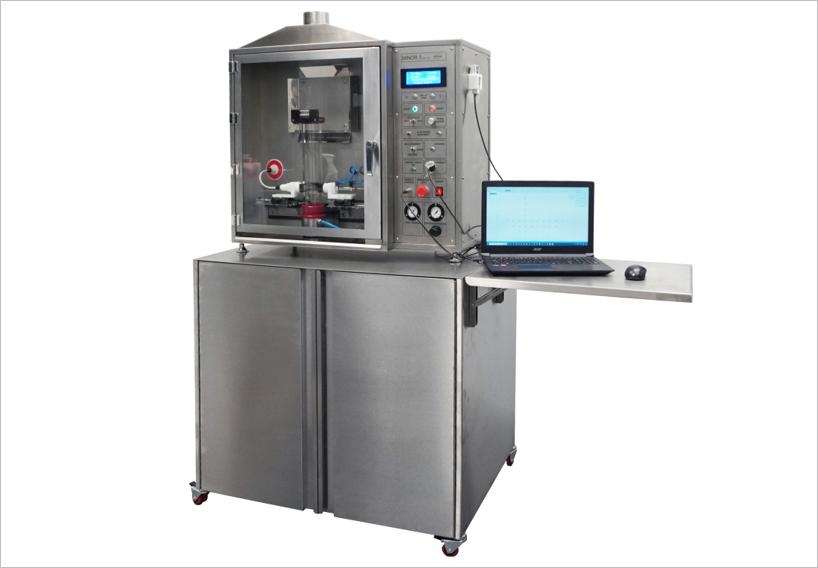

MINOR 3.2
MIE - Minimum Ignition Energy

DETERMINATION OF THE MIE - MINIMUM IGNITION ENERGY
OF DUST/AIR MIXTURES

STANDARD REFERENCES:

EN 13821
Potentially explosive atmospheres. Explosion prevention and protection.
Determination of minimum ignition energy of dust/air mixtures

ASTM E 2019
Standard Test Method for Minimum Ignition Energy of a Dust Cloud in Air

ISO/IEC 80079-20-2
Explosive atmospheres. Material characteristics. Combustible dusts test methods
SPECIFICATION:
 Test vessel: 1,2L Hartmann glass tube
 Ignition time delay range: 20-350 [ms]
 Time delay check: real time measurement
 Spark energy adjustment:
    - software adjustment
    - front panel slsector
 Energies: 1, 3, 10, 30, 100, 300, 1000 [mJ]
   2000 or 3000 mJ - optional
 Injection pressure: front panel adjustment, pressure regulator built-in
 Software: ANKOdustMIE®
 Dimensions:
    - Ingnition block 620 (W) x 400 (D) x 700 (H) [mm]
    - Control Unit 250 (W) x 400 (D) x 580 (H) [mm]
 Power: maximum 500 W
 Mains: 230VAC or 110 VAC
