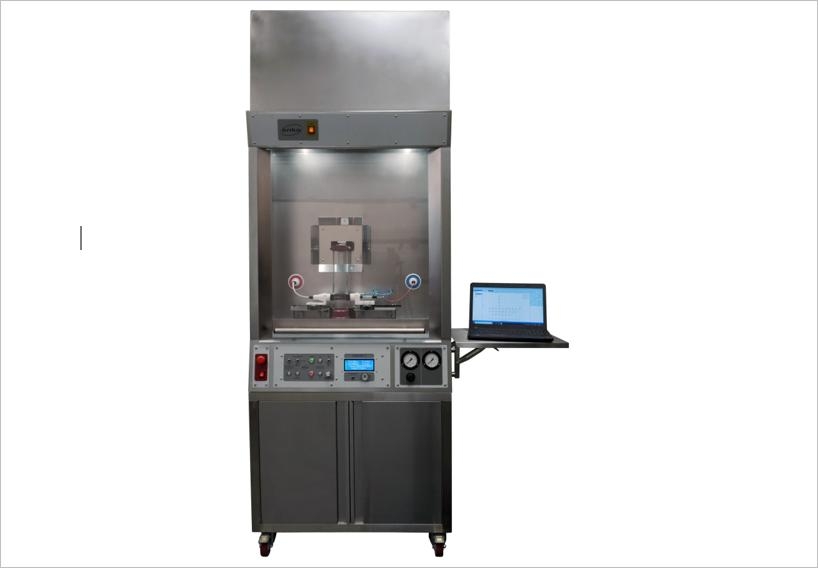

MINOR 2.3
MIE - Minimum Ignition Energy Apparatus

DETERMINATION OF THE MIE - MINIMUM IGNITION ENERGY
OF DUST/AIR MIXTURES

STANDARD REFERENCES:

EN 13821
Potentially explosive atmospheres. Explosion prevention and protection.
Determination of minimum ignition energy of dust/air mixtures

ASTM E 2019
Standard Test Method for Minimum Ignition Energy of a Dust Cloud in Air

ISO/IEC 80079-20-2
Explosive atmospheres. Material characteristics.
Combustible dusts test methods

SPECIFICATION:

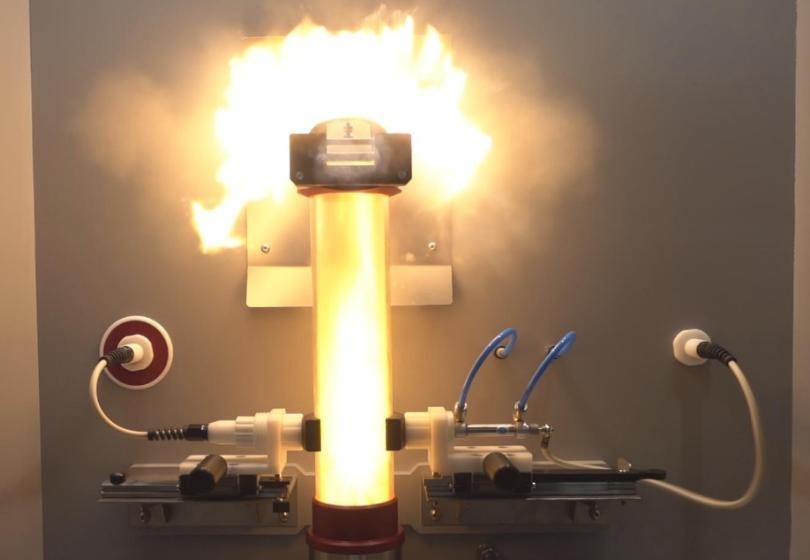

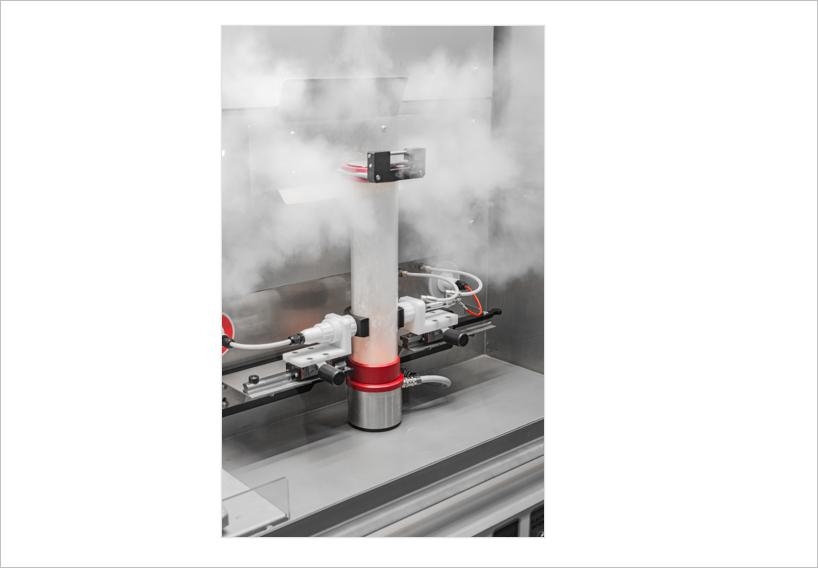

 Test vessel:                                         1,2L Hartmann glass tube
 Ignition time delay range:                   20-350 [ms]
 Time delay check:                                the system measures the actual time between dust injection and spark
 Spark type:                                         with or without inductance
 Energies:                                            1, 3, 10, 30, 100, 300, 1000 [mJ]
 Optional cusotm energies:                  50, 500, 2000, 3000 [mJ] available upon request
 Injection pressure adjustment:           built-in pressure regulator on the front panel
 Software:                                            ANKO MINOR®
 Dimensions:
    - 900 (W) x 795 (D) x 2418/2600 (H) [mm]
    - 35,5” (W) x 31” (D) x 95/102” (H) [in]
 Power: maximum 500 W
 Mains: 230VAC or 110 VAC
