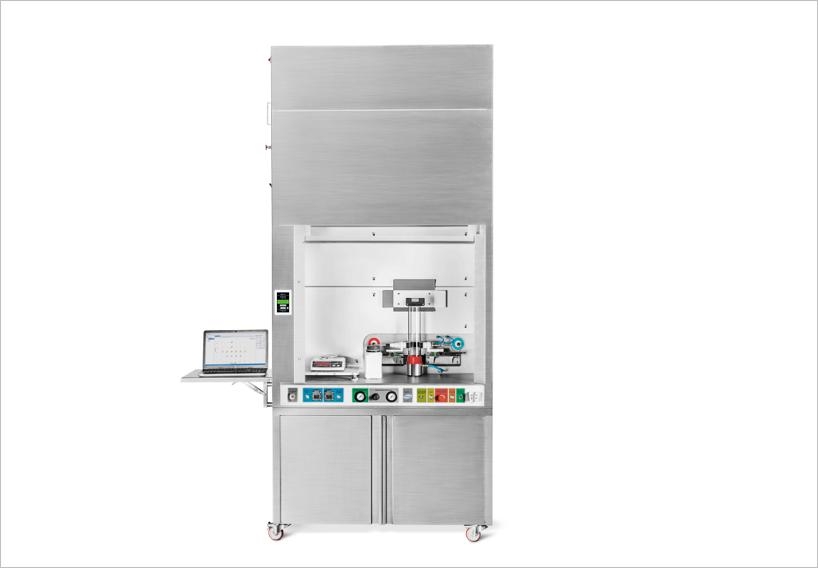

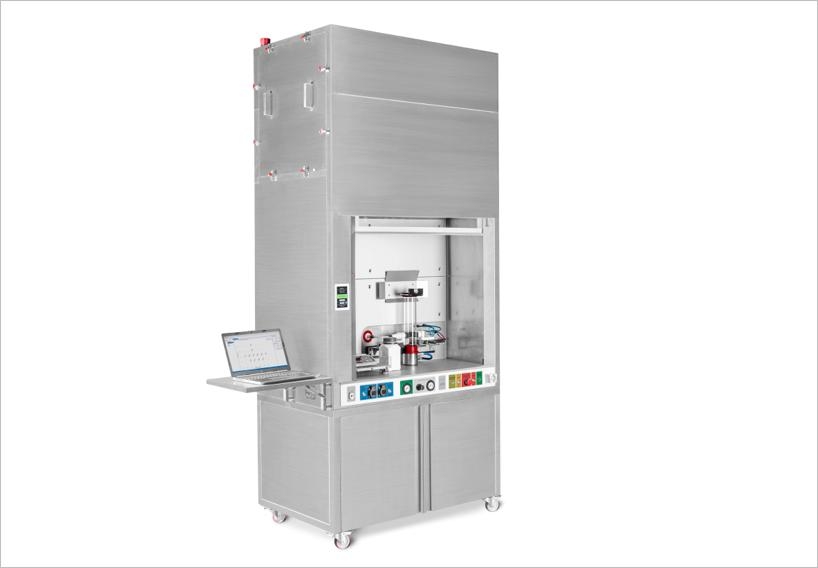

MINOR 2.4
MIE - Minimum Ignition Energy
DETERMINATION OF THE MIE - MINIMUM IGNITION ENERGY
OF DUST/AIR MIXTURES

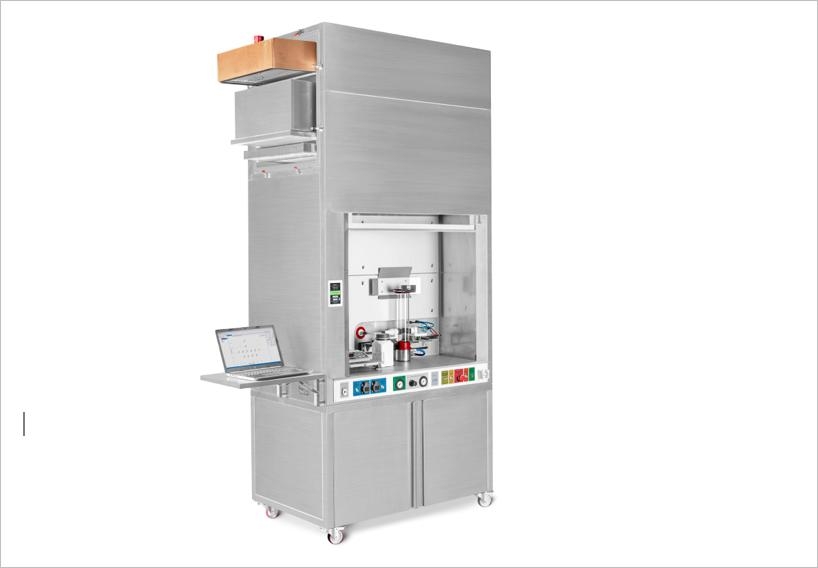

This device is equipped with an exhaust gas filtration system and air flow control
STANDARD REFERENCES:
EN 13821 Potentially explosive atmospheres. Explosion prevention and protection.
Determination of minimum ignition energy of dust/air mixtures
ASTM E 2019 Standard Test Method for Minimum Ignition Energy of a Dust Cloud in Air
ISO/IEC 80079-20-2 Explosive atmospheres. Material characteristics.
Combustible dusts test methods
SPECIFICATION:
• Test vessel: 1,2L Hartmann glass tube
• Ignition time delay range: 20-350 [ms]
• Time delay check: the system measures the actual time between dust injection and spark
• Spark type: with or without inductance
• Energies: 1, 3, 10, 30, 100, 300, 1000 [mJ]
• Optional cusotm energies: 50, 500, 2000, 3000 [mJ] available upon request
• Injection pressure adjustment: built-in pressure regulator on the front panel
• Software: ANKO MINOR®
• Dimensions: 1200x800x2765 mm; 48x32x110" (WxDxH)
• Test vessel: 1,2L Hartmann glass tube
• Ignition time delay range: 20-350 [ms]
• Time delay check: the system measures the actual time between dust injection and spark
• Spark type: with or without inductance
• Energies: 1, 3, 10, 30, 100, 300, 1000 [mJ]
• Optional cusotm energies: 50, 500, 2000, 3000 [mJ] available upon request
• Injection pressure adjustment: built-in pressure regulator on the front panel
• Software: ANKO MINOR®
• Dimensions: 1200x800x2765 mm; 48x32x110" (WxDxH)
• Power: maximum 500 W
• Mains: 230VAC or 110 VAC
• Mains: 230VAC or 110 VAC
